Scope and Application
It is suitable for conveying powder, granular, and block materials (temperature <200℃), such as coal powder, coal ash, sand, cement, carbamide, etc.
The screw conveyor is not only used for the concrete batching plant, bituminous concrete batching, but also for the chemical, building, food, metallurgy and so on.
coal powder
coal ash

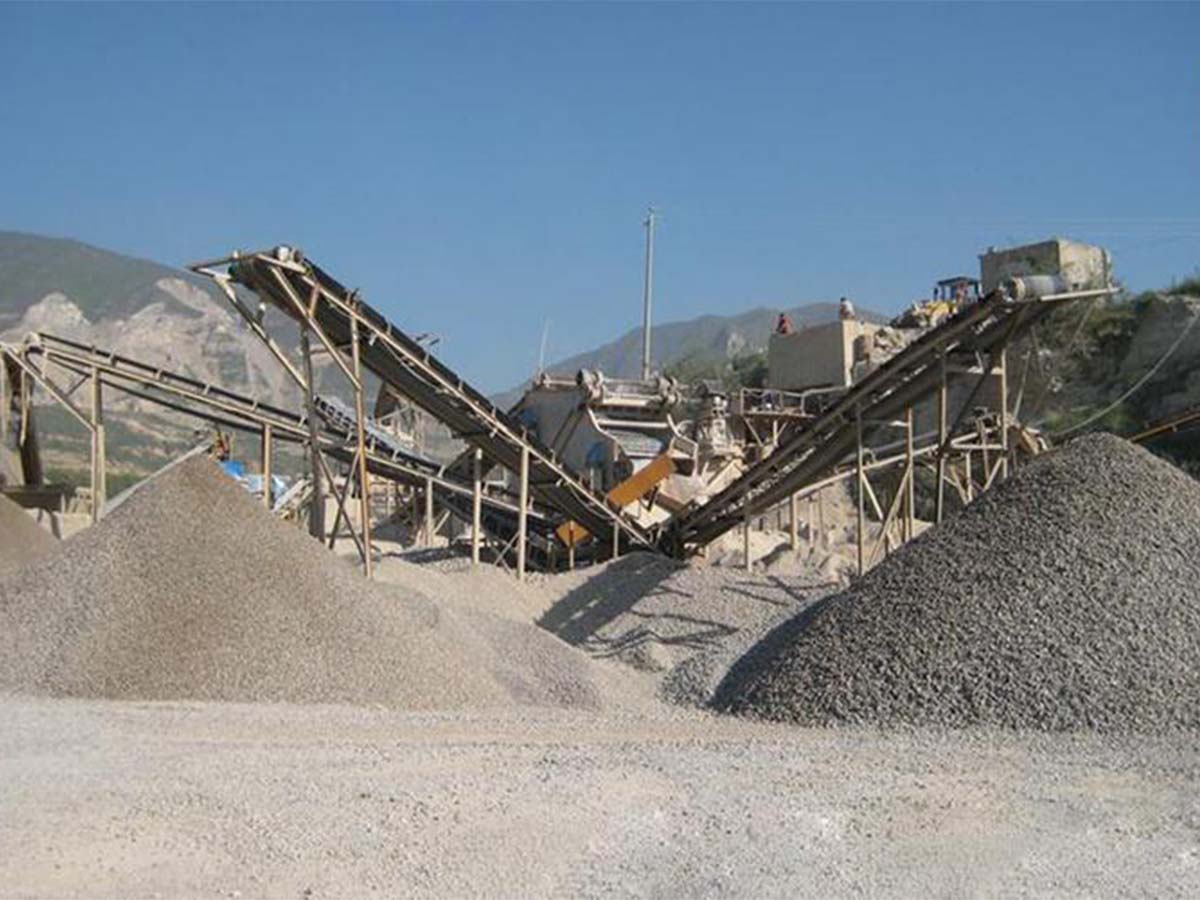

sand
cement
carbamide
chemical
building
food
metallurgy
contribution
Features
● Compared with GX type screw conveyor，LS screw conveyor eliminates the possibility of reducing bearing life because of untight seal and material leakage, as heading and rear bearings are removed outside the frame.
● Simple structure, small floor space, low noise, good sealing, easy operation and maintenance.
● High applicability, convenient feeding inlet and discharging outlet, easy for multi-point feeding and discharge materials.
Working Principle
Constituent parts

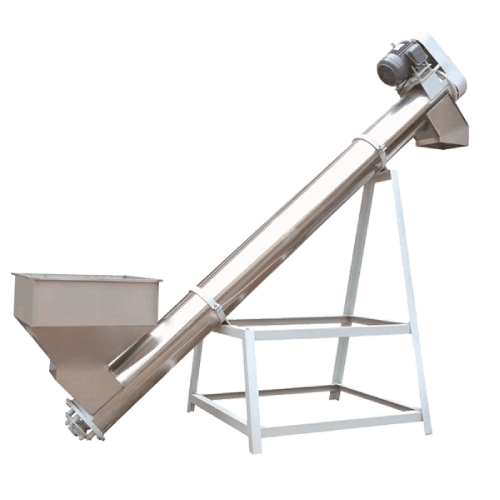

Screw conveyor consists of a shaft with a spiral blade and chute.
Component form
This Shaft is installed at both ends of chute bearing base through bearing.
The shaft head on one side of shaft connected with driving device.
There are feeding inlet and discharging outlet on the top and bottom of chute.
★ Materials get into the conveyor through feeding inlet.
★ Subject to the reverse thrust of screw blade, the materials can rotate with shaft as for radial force of thrust and friction between blade and materials.
★ As a result of material itself gravity and friction between chute and materials, the materials do not rotate with spiral blade but move along the chute on the effect of axial thrust of blade radial thrust force.
★ Materials move forward in spiral form, that is moving forward accompanied with tumbling motion in circumferential direction
Specification

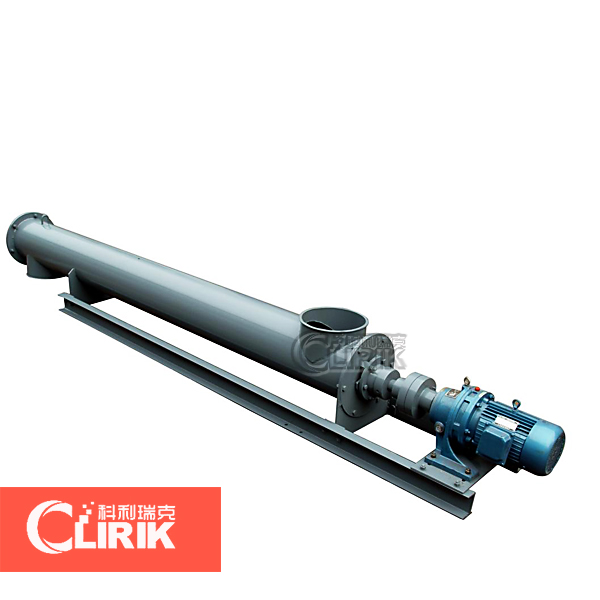

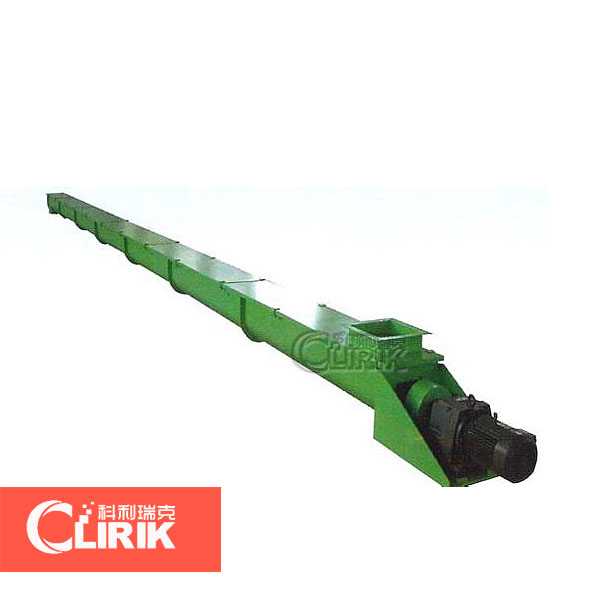

| Type | LS159 | LS219 | LS250 | LS250 | LS315 |
| Diameter (mm) | 159 | 219 | 250 | 250 | 315 |
| Screw Pitch (mm) | 100 | 175 | 200 | 240 | 250 |
| Ratate speed (r/min) | 83 | 83 | 90 | 71 | 70 |
| Conveying Capacity (m3/h) | 2-6 | 5-12 | 22 | 18 | 36 |
