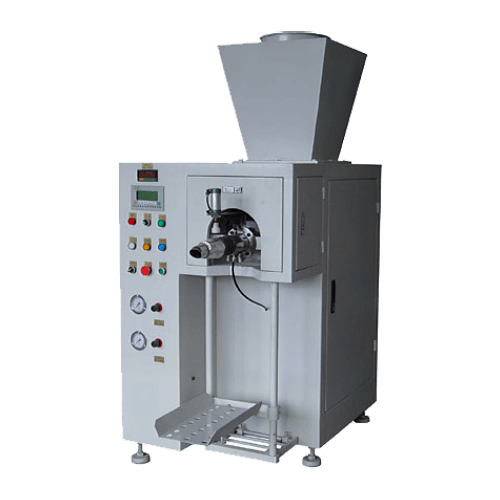

Micro Powder Packing Machine

Micro Powder Packing Machine

Our powder packaging machines use advanced electronic metering and frequency conversion technology, which can be customized to adapt to different material characteristics.

Accurate measurement

Dust-free particle

Complete the filling work in one go

Power:
3～4KW

Accuracy:
±0.2～0.5%

Capacity:
3-10 bags/min

Get a quote
Send email

Brief Introduction

There are usually two types of micro powder packing machine: valve type and opening type, packing machine can complete the filling work at one time, with accurate measurement and no dust characteristics.

Scope and Application

The packing machine is widely used in calcite (GCC), black carbon, talc, feldspar, kaolin, bentonite, AI(OH)3, carborundum, quartz, barite, food, etc.

calcite

black carbon

talc

feldspar

kaolin

bentonite

carborundum

quartz

barite

AI(OH)3

Specifications

TypeCBF-159ACBF-159BCBC-200CCBC-1000D
Bag weight3-50 KG1-60 KG1-50 KG1-2000
Accuracy±0.2～0.5%±0.1～0.3%±0.2～0.5%±0.2～0.5%
Filling speed3-5 bags/min, (25KG)3-5 bags/min, (25KG)3-5 bags/points, (25KG)7-10 package/points 1 ton
Power380V 50HZ, 4KW380V 50HZ, 8KW380V 50HZ, 3KW3380V 50HZ, 3KW
Air consumptionP ≥ 0.6Mpa, Q ≥ 0.4m3/minP ≥ 0.6Mpa, Q ≥ 0.4m3/minP ≥ 0.6Mpa, Q ≥ 0.4m3/minP ≥ 0.6Mpa, Q ≥ 0.4m3/min
Equipment weight420KG900KG550KG850KG
Dimension800mmL * 1400mmW * 1850mmH850mmW * 1500mmL * 2155mmH3300mmL * 2000mmW * 2700mmH800mmL * 1800mmW * 2500mmH
