Product Description
Generally horizontal transporting distance is under 300m, vertical distance is under 30m. It is suitable for conveying powder specific gravity less 1.3, fineness less 60 mesh, moisture content under 5%, under the highest instantaneous temperature under 250℃ working conditions, the maximum conveying ability is 60 t/h. It also can be used in the nesting conditions for single-point or multi-point requirements.
Scope
The Air Conveying System has features of long life, low operation and maintenance costs, small size, easy controlling. It is widely used in mining, building materials, coal, chemical and other industries.
mining
building
coal
chemical
energy
Features
● Variable arrangement of the pipe makes the production workflow process more reasonable.
● The system is sealed and lead to few flying dust, it benefits for environment protection.
● Few movement parts, convenient maintenance, automatic control can be realized easily.
● High efficient of transportation reduce the cost of packing, loading and unloading.
● Make the material avoid being damped, polluted, damaged, and mixed with other material, the quality of conveying is assured.
● Various operation processes can be realized meanwhile for the conveying, such as mixture, crush, grade, dryness cooling, and dust collection.
● Send the material from couple place to one place and from one place to couple place, realize far distance operation.
● For the material with erratic chemical character, can adopt inert gases conveying.
Working Principle

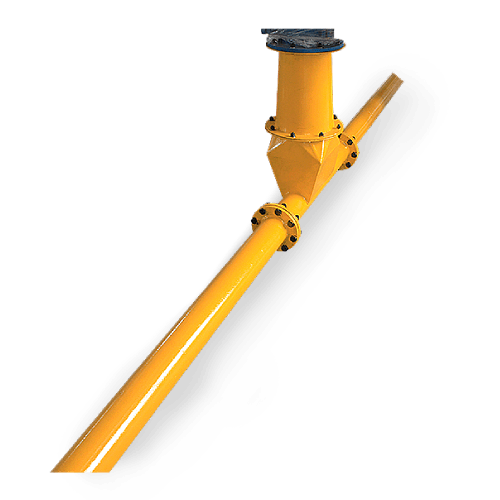

Air conveying system adopts the principle of gas-solid flow fluidization, jet technology, combined with differential pressure principle , to finish thins working process. Taking the electric rotary as the feeding device, the material is evenly put into mixing chamber. At the same time of fluidization, the high-speed of air flow is produced by roots blower sends the material into acceleration chamber, and the suspension flow goes into the silo through conveying pipeline. After filter separated, the powder falls into the silo while gas release to the atmosphere. The powder conveying purpose is achieved.
Specification
| Model | CLXB-75 | CLXB-100 | CLXB-150 | CLXB-200 | CLXB-250 |
| Capacity (t/h) | 1~4 | 3~9 | 10~15 | 15~20 | 18~25 |
| Blast Capacity (m3/min) | 3~9 | 9~20 | 20~36 | 36~50 | 50~70 |
| Inlet pipe diameter | DN100 | DN133 | DN125/DN159 | DN219 | DN273 |
| Velocity in pipe (m/s) | 13～16 | 13～16 | 13～16 | 13～16 | 13～16 |
| Pressure (kpa) | ≤98 | ≤98 | ≤98 | ≤98 | ≤98 |
| Body material | cast iron, cast steel, stainless | cast iron, cast steel, stainless | cast iron, cast steel, stainless | cast iron, cast steel, stainless | cast iron, cast steel, stainless |
| Motor (kw) | 3～15 | 15～30 | 35～65 | 70～90 | 90～110 |
